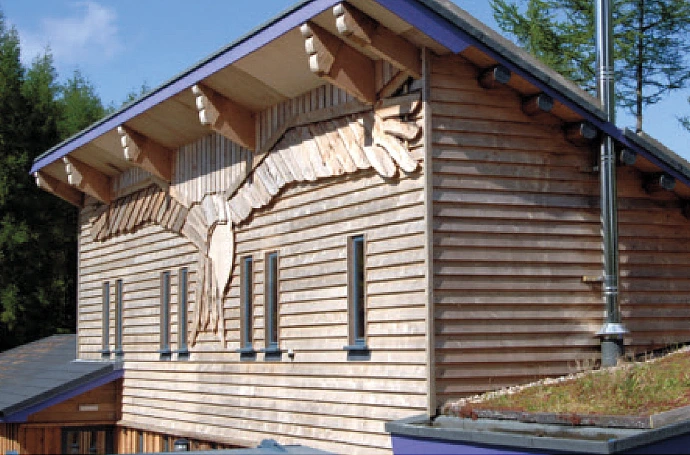

Nant Yr Arian Visitor Centre
Nant Yr Arian Visitor Centre
Rainwater System
  • 10,000 L GRP tank
  • Wisy WFF 150 vortex filter
  • Single pump Multigo 40/06
  • Expansion vessel
Design Data
  • Architects: Rubyshine
  • Usage: WCs and urinals
  • Estimated usage: 1,050 litres/day
  • Average annual rainfall: 1,051 m2
  • Roof area: 266 m2
  • Expected annual rainwater collection: 189 m3
  • Estimated percentage of demand met by rainwater system: 49%
  • Capital cost: £3,700 (2003)
  • Estimated payback time: 8.3 years (Based on Dwr Cymru Welsh Water tariff : 236p/m3)
  • Completion: Spring 2003
Other Green Design Features
  • Operating statistic: rain water collection and usage meters installed, monitoring on-going.

Nant Yr Arian Visitor Centre
Nant yr Arian Visitor Centre

Project for Forest Enterprise Ceredigion, Wales.

Rainharvesting Systems Ltd. provided the rainwater harvesting system for this unusual visitor centre in Wales.

Water

A rainwater harvesting system channels water from the roof to a 10,000 litre tank for flushing the toilets and the bike wash, reducing mains water consumption by 25%. Dual flush cisterns in the toilets, push taps in the basins and other efficient plumbing fittings, equipment and controls have further reduced water consumption by 10%.

Rainwater System
  • 10,000 L GRP tank
  • Wisy WFF 150 vortex filter
  • Single pump Multigo 40/06
  • Expansion vessel
Design Data
  • Architects: Rubyshine
  • Usage: WCs and urinals
  • Estimated usage: 1,050 litres/day
  • Average annual rainfall: 1,051 m2
  • Roof area: 266 m2
  • Expected annual rainwater collection: 189 m3
  • Estimated percentage of demand met by rainwater system: 49%
  • Capital cost: £3,700 (2003)
  • Estimated payback time: 8.3 years (Based on Dwr Cymru Welsh Water tariff : 236p/m3)
  • Completion: Spring 2003
Other Green Design Features
  • Operating statistic: rain water collection and usage meters installed, monitoring on-going.
